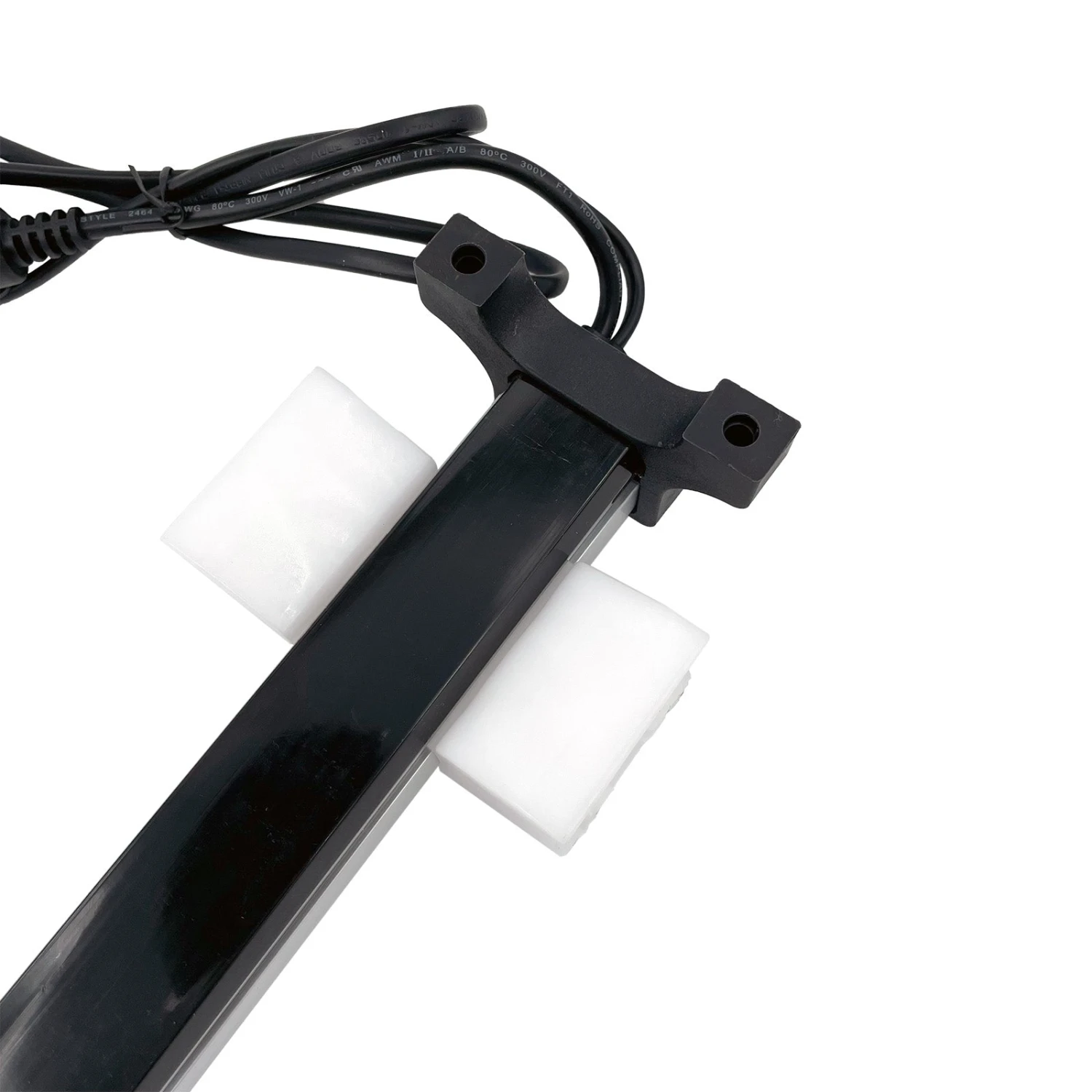

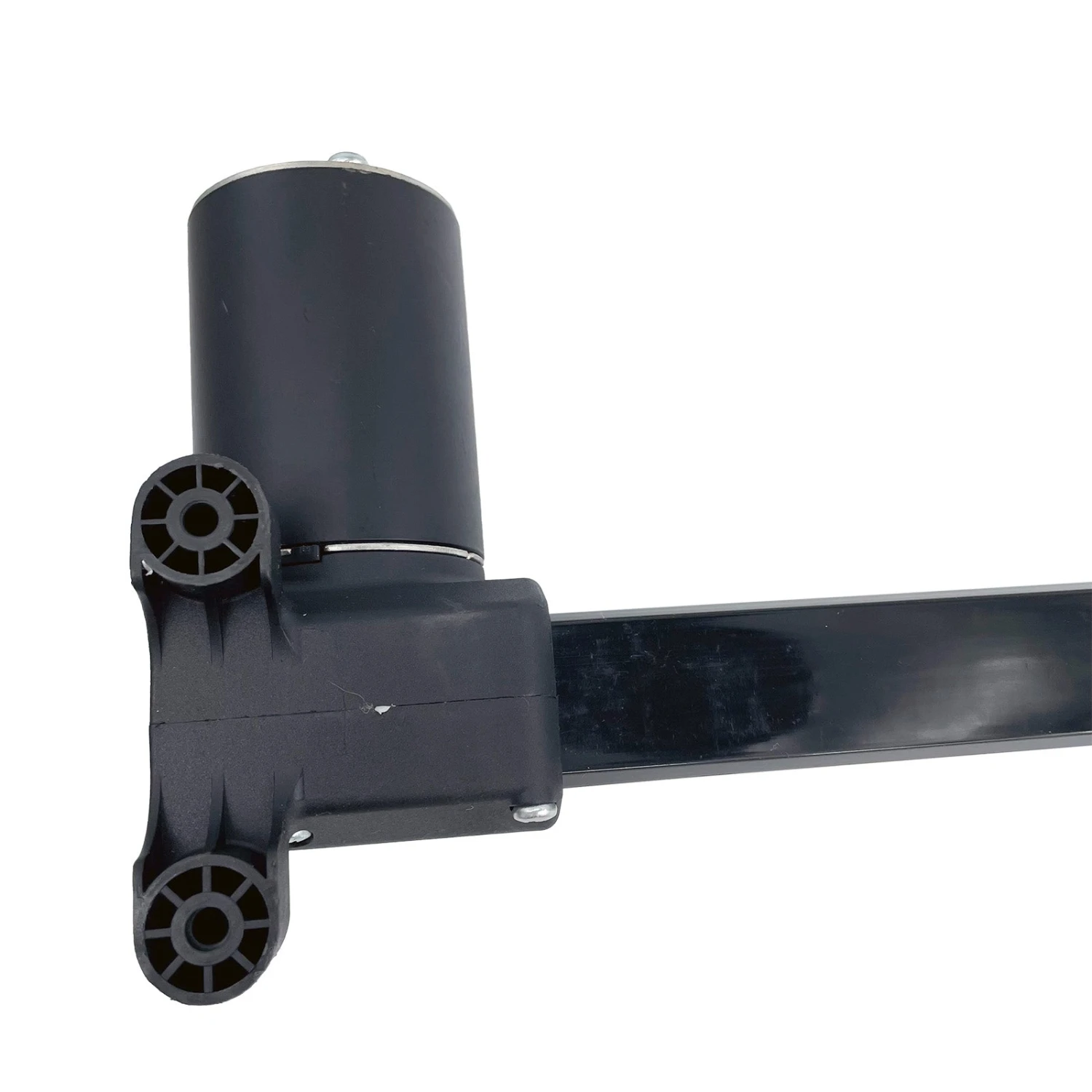

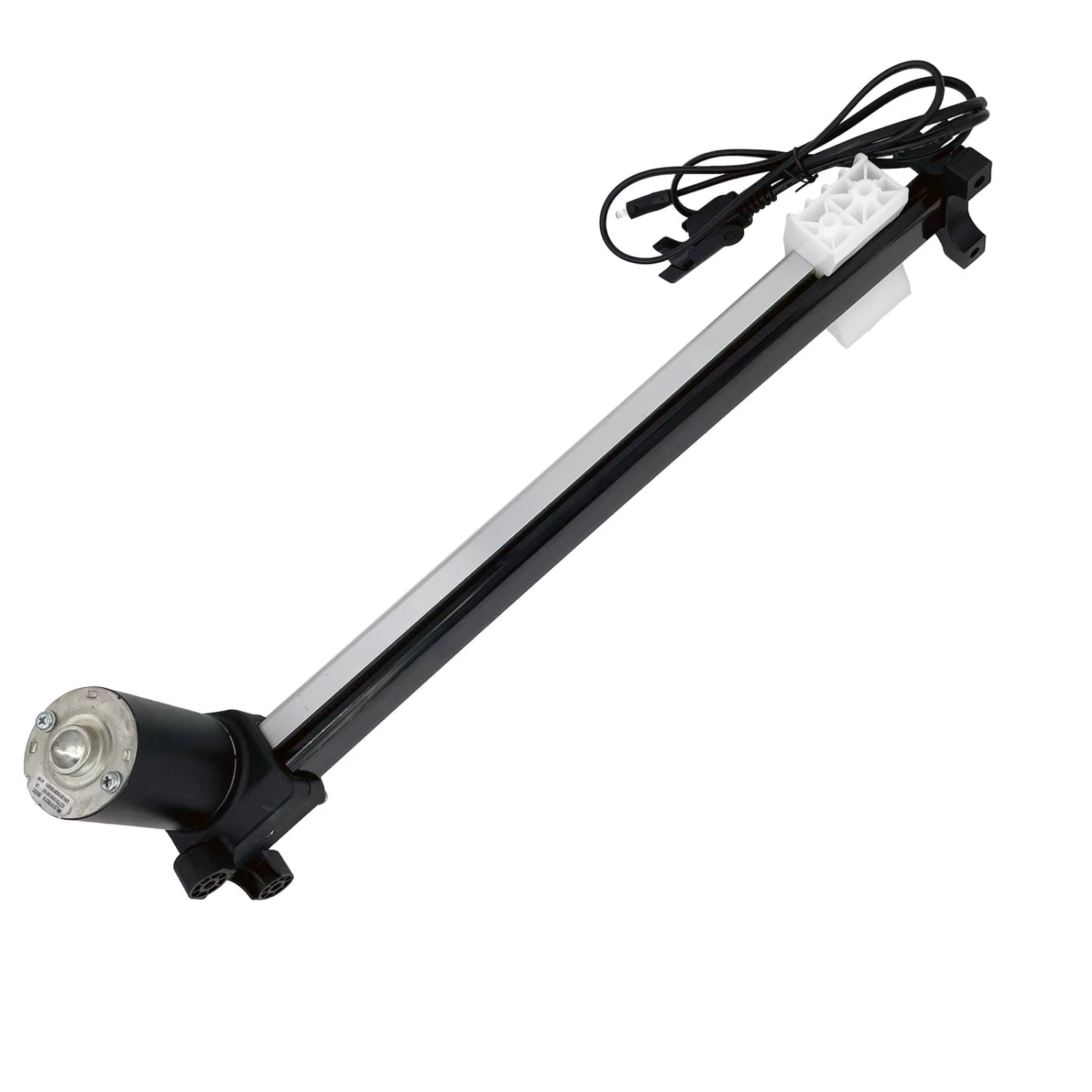

Kaidi KDPT007-168 Linear Actuator

•
• This is the genuine Kaidi KDPT007-168 linear actuator assembly.
• This actuator is used for motion furniture, such as power recliners, lift chairs, couches, and loveseats. It drives the open/close (up/down) motion.
• The stroke for this linear actuator is 335mm.
•  The KDPT007-168 linear actuator has 2 leads, a 2-pin male plug connects to the power supply, and a 5-pin plug connects to the remote controller.



Specifications:

• Model: KDPT007-168
• Maximum load: 800N
• Speed: 42mm/s
• Stroke: 335mm
• Rated voltage: DC 29V
• Rated power: 75W
• Maximum duty cycle: 2 minutes ON and 18 minutes OFF



Please note:

• This actuator is not compatible with all motion furniture. Please make sure that your linear actuator has the exact same model number (KDPT007-168) before ordering.
• This item is not returnable or refundable. Please avoid test buying.
• We recommend troubleshooting the power adapter, remote controller, switch, junction box, and cables before purchasing this actuator.
• The lead time for delivery is 2-20 days, depending on stock availability.
• If you need a different model, please contact us for a quote.
